Coiled Tubing Data Acquisition System

Real-time Electronic Acquisition & Monitoring

with Human Machine Interface

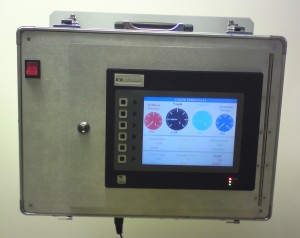

The REAM HMI is a user-friendly data acquisition system that reads data from electronic sensors and displays the data on a TFT touch screen, which acts as both an input and an output device. The system records the data on solid state Compact Flash memory and allows remote monitoring of the data. Two screen size options are available, 6” and 8.4”.

The system is made of two main parts, REAM is a microprocessor based data acquisition board, which collects data from electronic sensors, digitise the readings, and supply the appropriate excitation voltage to the sensors. The HMI communicates with the REAM board to retrieve, display, and store the data.

REAM has analogue, counters (frequency), and quadrature channels. The analogue channels accept signals from sensors with 0-5 vdc, 0-10 vdc, or 4-20 mA output. The counters accept pulse signals produced by proximity switches or magnetic pickups. The quadrature channel accepts up/down counter, such as a depth encoder.

In addition to the REAM board, the HMI can communicate with many other devices such as Medco’s Tubing Ovality Monitor (TOM), NuFlo MC-III Flow Analyser, and control devices such as Medco’s Emergency Injector Stop System (EISS).

The outputs are available on Web Pages, they can be viewed remotely on a Local Area Network (LAN) or even a Wide Area Network (WAN), provided that proper Internet connections are available. There are many other features in the HMI and these can be tailored to client’s request.


Power requirement: 12 vdc, max. of 1.5 Amps. Supplied with AC/DC converter 95 to 260 VAC.

Operating temperature: 0 to 50oC.

Standard Parameters: Depth, Tubing Speed, Weight, Circulation Pressure, Wellhead Pressure, Casing Pressure, Flow Rate, N2 Rate, Fluid Total, N2 Total.
