CalCheck

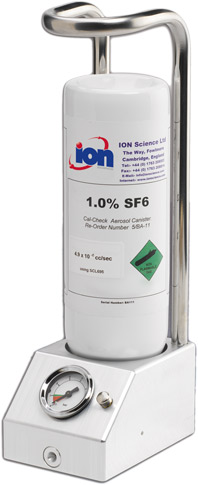

CalCheck – Easy and Reliable Calibration of Gas Leak Detectors
CalCheck is an easy to use reliable tool for the self calibration of gas and leak detection instruments, giving you peace
of mind and confidence in the accuracy of the measurements you rely on.
For your convenience the same base unit can be used for calibration with many different gases and leak rates. Ion Science can supply almost any non-corrosive gas, at a range of concentrations.
The CalCheck leak is easily removable, enabling you to choose between a number of specified standard leaks according to your particular calibration needs.
Within 5 minutes of unpacking your new CalCheck you can be making reliable self calibration checks. Screw the gas canister into the base and follow the simple 1, 2, 3 instructions below.
1) Push down on the top of the bottle releasing a controlled quantity of gas ensuring that the needle is in the white area, if it remains in the red a new canister is required
2) Press the adjust button until the needle moves into the green area of the dial
3) Your CalCheck unit is now ready for use. Present your instrument to the test port for checking
Key Features
Features and benefits of the CalCheck include:
- Easy to use
- Reliable
- Ready to use in minutes
- Convenience – allows self calibration of your gas and leak detection instruments
- Confidence in the accuracy of the measurements you rely on
- Can be used for calibration with many different gases and leak rates
- Easily removable, enabling you to choose between a number of specified standard leaks
Gases available include:
- Helium: 5 x 10-4 cc/sec
- Hydrogen: 5 x 10-4 cc/sec
- SF6: 5 x 10-7 cc/sec, 5 x 10-6 cc/sec or 5 x 10-8 cc/sec
- R134a: 5 gr/year
- R22: 5 gr/year
- R1301: 5 gr/year
- R600a: 5 gr/year
- And any other non corrosive gas
