SF6 GasCheck P1

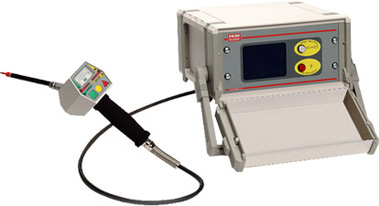

SF6 GasCheck P1 – Sensitive SF6 Leak Detector


The SF6 GasCheck P1 is a highly sensitive SF6 gas leak detector capable of detecting leaks to 1×10-8ml/sec (0.1ppm, 0.001 gm/yr).

The revolutionary SF6 gas leak detector utilises award winning negative ion capture (NIC) technology for fast, accurate detection.

Designed for SF6 gas leak testing and measurement in high voltage electrical SF6 switchgear, the instrument also detects other gases with a high affinity for electrons, such as refrigerant R12.

A unique advantage of the instrument is that it is unaffected by exposure to large leaks. Even after saturation or exposure to leaks of 100%, clear down remains rapid (<1s). The SF6 gas leak detector also benefits from having a non-radioactive source, eliminating registration, storage and transportation issues found with traditional radioactive ECD SF6 gas leak detectors.

Additional features of the SF6 gas leak detector include data-logging, alarms; both audio and visual, and a robust portable case. The instrument requires no consumables, such as Argon, reducing the ongoing costs of operation. There are no items requiring maintenance or service in the handgun or console.

This GasCheck P1 SF6 gas leak detector meets the demands for quality and traceability to International standards as required by today’s industry.



  • Ultra high sensitivity with a 1 x 10-8 ml/sec (HighSense™ option)
  • Award winning Negative Ion Capture (NIC) technology
  • 1 second rise and clear down for rapid leak detection
  • Large leaks present no contamination problems
  • Non radioactive source for easy storage and transportation
  • No argon or other pressurised gases required – reduced cost of ownership
  • Smart sensor technology, detachable probe
  • Display units cc/sec, gm/yr and ppm
  • Touch screen with help menus
  • Lightweight 3 button handgun
  • Data storage and printing
  • No training required, switch on and go
  • Transit: robust steel transit case for export shipping


Applications include


  • SF6 leak testing and measurement in high voltage switchgear
  • Breathing apparatus testing
  • Medical device testing
  • Leak integrity assurance to ultra low levels on equipment containing (H)CFC’s in medical, refrigeration and air conditioning units
